A ball bearing is a small device that helps things spin smoothly. It uses tiny metal balls to separate moving parts. When these balls roll between rings, they turn sliding friction into rolling friction. This change makes moving much easier. In fact, rolling friction can be about 10 times lower than sliding friction. This means a ball bearing lets wheels and other parts move with less effort and supports heavy loads at the same time.
Ball bearings reduce friction by using small balls to change sliding friction into much lower rolling friction, making machines move easier and last longer.
A ball bearing has key parts: rings that hold the balls, balls that roll to carry loads, a cage that spaces the balls, and seals that protect the inside from dirt and moisture.
Different types of ball bearings fit different needs, such as deep groove for general use, angular contact for heavy combined loads, thrust for axial loads, and self-aligning for misaligned shafts.
Ball bearings are vital in many areas like cars, appliances, machines, and electronics, helping parts move smoothly, reduce noise, and improve efficiency.
Choosing the right ball bearing depends on load type, speed, precision, and material, which helps machines run safely and reduces repair costs.
A ball bearing contains several important parts. Each part has a special job to help the bearing work smoothly and last longer.
The rings form the main structure of a ball bearing. There are two rings: the inner ring and the outer ring.
The inner ring attaches to the shaft and rotates with it.
The outer ring stays still and supports the bearing in its housing.
Both rings have grooves on their inner surfaces. These grooves act as tracks for the balls.
The load moves from the outer ring, through the balls, and then to the inner ring. This setup allows smooth rotation and supports heavy loads.
Most rings use high-carbon chromium bearing steel, such as GCr15 (52100). This steel gives the rings high load capacity, hardness, and abrasion resistance. For wet or chemical environments, stainless steel rings offer better corrosion resistance.
The balls are the rolling elements inside the bearing. They fit between the two rings and roll along the grooves.
More balls can increase the load capacity and help spread the force evenly.
Too many balls can cause extra friction and reduce efficiency.
The size of the balls affects how much weight the bearing can handle.
Common ball materials include:
Steel: Strong, cost-effective, and good for most uses.
Stainless steel: Resists rust and works well in wet places.
Ceramics: Lightweight, run cooler, and resist corrosion.
Glass and plastics: Used for special needs like chemical resistance or low noise.
The cage keeps the balls spaced evenly and stops them from bumping into each other.
It reduces friction, vibration, and noise.
The cage helps the balls move smoothly and extends the bearing’s life.
It can also help hold lubrication.
Cage Material Type | Properties and Uses |
|---|---|
Steel, Bronze | Strong, good for heavy loads |
Nylon, Polyamide | Lightweight, low friction, good for high speeds |
Phenolic Resin | Self-lubricating, lightweight, but brittle |
Seals protect the inside of the ball bearing from dirt, dust, and moisture.
They keep the lubricant inside and block out harmful particles.
Seals come in different types, such as contact seals, non-contact seals, and labyrinth seals.
Good seals help the bearing last longer and reduce the need for maintenance.
Tip: Choosing the right seal type depends on the environment and speed of the application.
A ball bearing works by changing sliding friction into rolling friction. When two surfaces slide against each other, they create a lot of resistance. This resistance, called sliding friction, makes it hard to move heavy objects. In a ball bearing, small balls roll between the inner and outer rings. Rolling friction is much lower than sliding friction. The balls only touch the rings at small points, so there is less contact and less resistance.
Rolling-element bearings, like ball bearings, use rolling contact instead of sliding contact. This design reduces friction and wear. The balls roll smoothly, so the bearing does not need a special lubricant to keep the surfaces apart. Normal lubricants work well to keep the movement smooth and protect the parts. The coefficient of rolling friction is much smaller than that of sliding friction. In fact, rolling friction is often two to three orders of magnitude less than sliding friction. This means a ball bearing lets machines move with less effort and energy loss.
Note: Wheels and ball bearings make it much easier to move heavy loads because rolling friction is always less than sliding friction.
A ball bearing does more than reduce friction. It also supports loads and helps parts spin smoothly. When a load presses on the bearing, the force moves from the outer ring to the balls. The balls then carry the load to the inner ring. The inner ring usually attaches to a shaft and rotates, while the outer ring stays still in the housing. The balls roll between the rings, spreading the force evenly.
The cage inside the bearing keeps the balls spaced apart. This spacing helps the balls share the load and prevents them from bumping into each other. When a load is applied, the rings and balls deform slightly. This small change helps the balls press firmly against the rings, making sure the load transfers smoothly. Lubrication forms a thin film at the contact points, reducing wear and helping the bearing last longer.
Standard ball bearings have two main load ratings: static and dynamic. The static load rating shows how much weight a bearing can hold without permanent damage when it is not moving. The dynamic load rating tells how much weight the bearing can handle while rotating for a long time. These ratings help engineers choose the right ball bearing for each job.
Tip: Always check the load ratings before picking a ball bearing for a machine. The right choice keeps equipment running smoothly and safely.
Ball bearings come in several types, each designed for specific needs and conditions. The main types include deep groove, angular contact, thrust, and self-aligning ball bearings. Each type has unique features that make it suitable for different machines and uses.

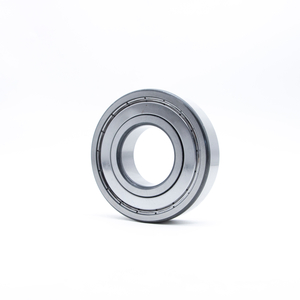

Deep groove ball bearings are the most common type. Their design features deep, symmetrical raceway grooves. These grooves allow the bearing to support both radial and axial loads in both directions.
They operate quietly and with low vibration, even at high speeds.
The simple structure makes them durable and easy to maintain.
Deep groove ball bearings work well in electric motors, household appliances, automotive wheels, and fans.
Tip: Deep groove ball bearings offer low friction and long service life, making them ideal for high-speed and noise-sensitive equipment.

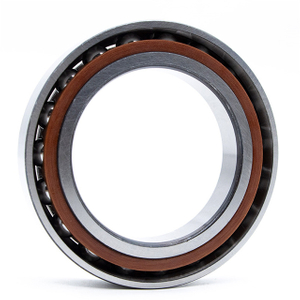

Angular contact ball bearings have a unique design with a contact angle between the balls and raceways. This angle allows them to handle combined radial and heavy axial loads.
The contact angle can range from 15° to 40°, with larger angles supporting higher axial loads.
These bearings often appear in pairs or sets to support loads in both directions.
Common uses include machine tool spindles, industrial robots, and aerospace equipment.
Arrangement Type | Load Handling Capability | Typical Applications |
|---|---|---|
Back-to-Back (DB) | Axial loads in both directions, high rigidity | Spindles, gearboxes |
Face-to-Face (DF) | Radial and axial loads, allows displacement | Pumps, electric motors |
Tandem (DT) | Heavy unidirectional axial loads | High-speed turbines |
Double-Row | Radial and axial loads, higher capacity | Automotive hubs, generators |
Thrust ball bearings are designed to support only axial loads. Their structure includes two grooved rings and a set of balls.
These bearings do not handle radial loads well.
They appear in applications where strong axial forces act, such as turbine shafts, machine tools, and vehicle transmissions.
Thrust ball bearings also help in power generation equipment and heavy-duty machinery
Note: Thrust ball bearings play a key role in reducing friction in machines that experience strong pushing or pulling forces along the shaft.
Self-aligning ball bearings feature two rows of balls and a spherical outer ring raceway. This design allows the bearing to correct misalignment automatically.
The inner ring, balls, and cage can rotate freely, even if the shaft bends or the housing is not perfectly aligned.
These bearings reduce vibration and noise, which helps extend the life of the machine.
Pumps, fans, and motors often use self-aligning ball bearings where misalignment may occur.
Self-aligning ball bearings help machines run smoothly, even when installation or shaft errors cause misalignment.
Ball bearings play a vital role in modern vehicles. They help many parts move smoothly and last longer.
Engine systems and powertrain parts, such as crankshafts and camshafts, use ball bearings to reduce friction and improve fuel efficiency.
Transmissions and gearboxes rely on ball bearings to support shafts and allow precise gear shifting, even under high torque.
Wheel hubs and suspension systems use ball bearings to provide stability, cushion shocks, and minimize vibrations for a safer ride.
Steering columns depend on ball bearings for smooth and accurate movement, which is important for electric power steering.
Interior comfort systems, like seat motors and window regulators, use ball bearings for quiet and efficient operation.
Sliding doors and seat track rails also use bearings to ensure reliable motion over many cycles.
High-quality ball bearings help vehicles run quietly, reduce maintenance, and improve the driving experience.
Household appliances depend on ball bearings for smooth and quiet operation.
Washing machines and refrigerators use ball bearings in their motors to reduce noise and vibration.
These bearings help distribute weight evenly, which prevents shaking and extends the life of the appliance.
Sealed bearings with special lubricants allow for maintenance-free use.
Ceramic bearings in some appliances support higher speeds and quieter performance.
Kitchen appliances, such as dishwashers, also use ball bearings to keep moving parts running smoothly.
Ball bearings make appliances more energy-efficient and reliable, which is important for daily use.
Industrial machines need ball bearings to work efficiently and last longer.
Ball bearings reduce friction between moving parts, which lowers energy loss and wear.
They support both radial and axial loads, spreading stress evenly and preventing early failure.
Machines run more quietly and with less vibration because of ball bearings.
Lower friction means less heat, which protects machine parts from damage.
Regular maintenance, such as lubrication and inspection, keeps ball bearings working well and prevents breakdowns.
Proper care of ball bearings in machinery leads to fewer repairs and longer service life.
Miniature ball bearings are essential in many electronic devices.
Hard disk drives, printers, and optical lenses use these bearings for smooth and precise movement.
Small power tools and model toys rely on ball bearings for efficient rotation.
Smartphones, computers, and audio equipment use compact ball bearings to improve performance and durability.
Fans and robotic arms in electronics depend on ball bearings for stable and quiet operation.
As electronic devices become smaller and more advanced, the need for high-quality ball bearings continues to grow.
Ball bearings help machines run smoothly and last longer. They use rings, balls, cages, and seals to reduce friction and support different loads. Choosing the right ball bearing depends on several factors:
Factor | What to Check |
|---|---|
Load Type | Radial, axial, or combined |
Speed | High or low rotation |
Precision Level | ABEC rating for accuracy |
Material | Steel, ceramic, or stainless steel |
Selecting the right type improves reliability and saves money by reducing breakdowns and repairs.
Ball bearings often fail due to dirt, lack of lubrication, or overloading. Excess heat or moisture can also damage them. Regular cleaning and proper lubrication help prevent most problems.
Unusual noise, vibration, or rough movement often signals a worn-out bearing. If a machine part feels loose or does not spin smoothly, the bearing may need replacement.
Ball bearings can move without lubrication, but they wear out much faster. Lubrication reduces friction and heat. It also protects the bearing from rust and dirt.
Ceramic ball bearings weigh less and resist heat and corrosion better than steel. They work well at high speeds. However, they cost more and may not suit every application.
