Thin Wall Section Bearing 61807 61809 61811 61813 61815 Tn1/Zz/2RS/Open

Thin Wall Section Bearing 61807 61809 61811 61813 61815 Tn1/Zz/2RS/Open

Quantity:




Inquire Add to Basket

Port:
Shenzhen, China
Production Capacity:
1000000 Pieces/Month
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal, Money Gram

Model NO.:
61807 61809 61811 61813 61815
MOQ:
1PC
Quality Level:
P0 P6 P5
Transport Time:
3-7 Days(Depending on Customer Requirements)
Company Nature:
Manufacturer
Target Market:
Europe,Asia,USA,Africa
Trademark:
OEM
Transport Package:
Box Pallet
Specification:
12*24*6
Origin:
China
HS Code:
8482102000
Contact Angle:
0
Aligning:
Non-Aligning Bearing
Separated:
Unseparated
Rows Number:
Single
Load Direction:
Radial Bearing
Material:
Bearing Steel

Product Description

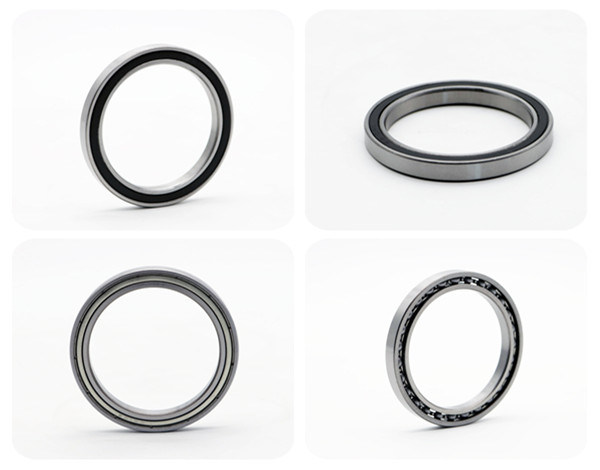

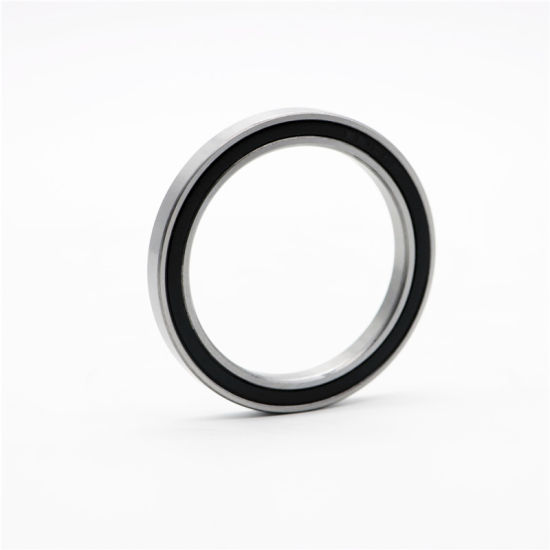

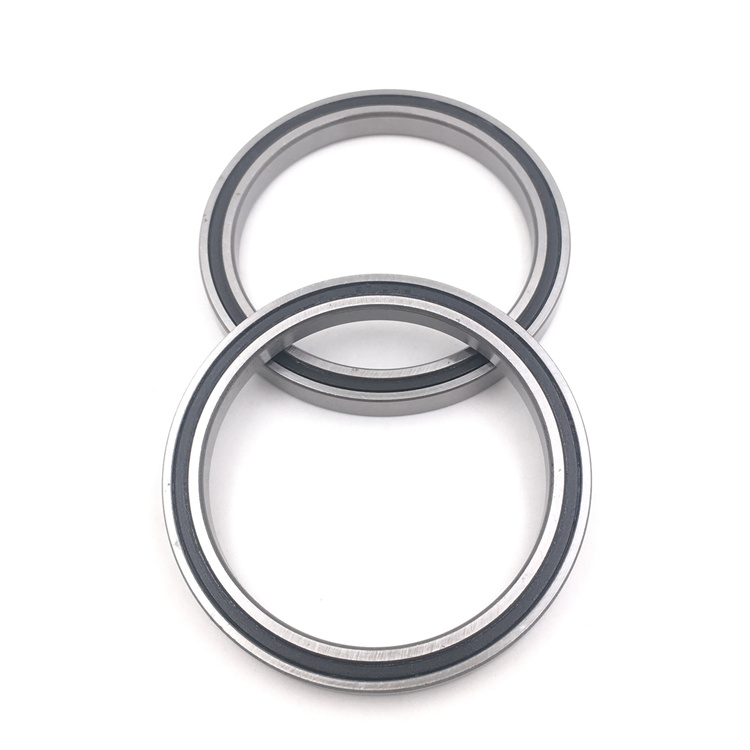

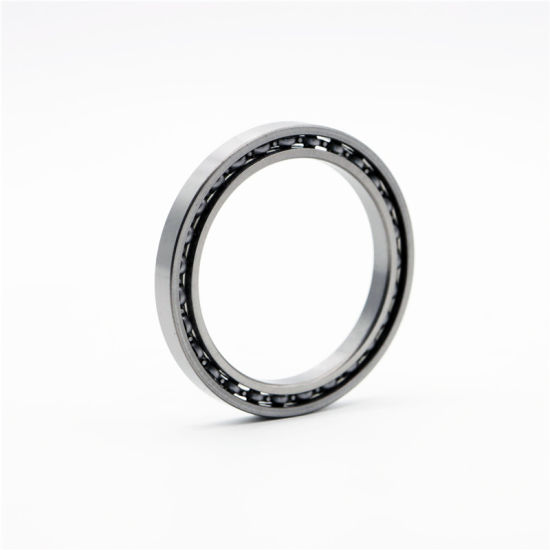

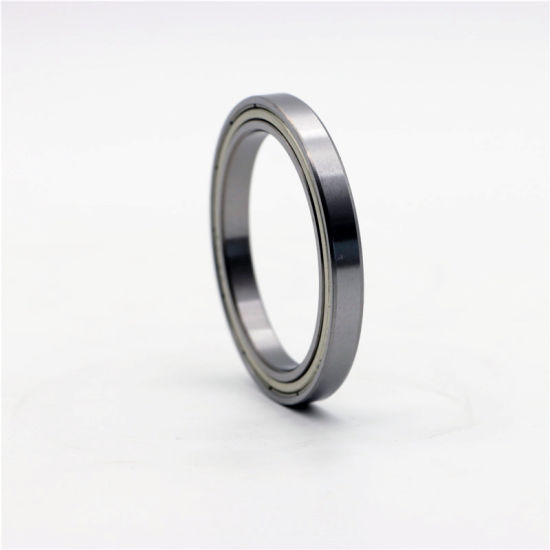

Thin Wall Section Bearing 61807 61809 61811 61813 61815 TN1/ZZ/2RS/OPEN

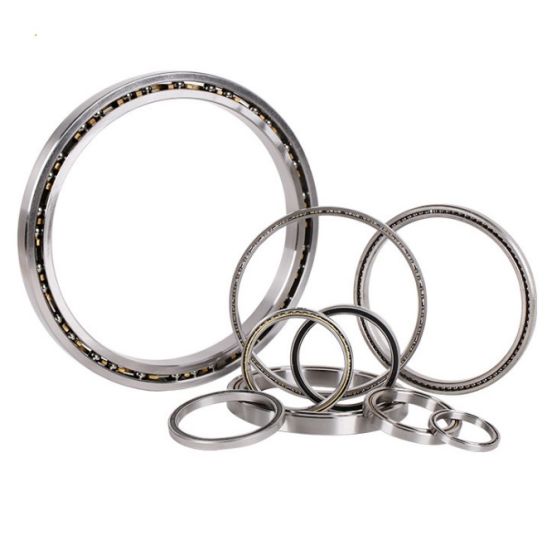

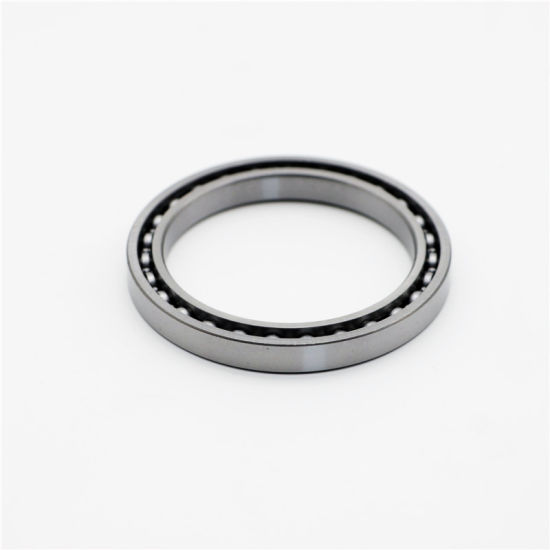

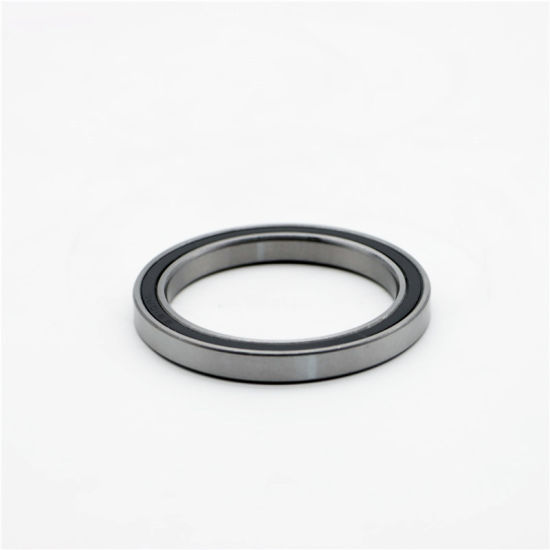

Thin-wall bearing is a kind of deep groove ball bearing, it USES a small outside diameter of the steel ball, the realization of the ultra-thin bearing section has the characteristics of miniatures, lightweight. It is generally divided into rubber seal -RS, iron seal -ZZ, plane iron card -K, copper card -M.
Features and Benefits:
1. Low friction torque
2. High rigidity
3. Good turning accuracy

Thin Wall Section Bearing 61807 61809 61811 61813 61815 Tn1/Zz/2RS/Open

Boundary dimensions			Basic load ratings		Limiting speeds		Bearing No.
(mm)			(kN)		(r/min)
d	D	B	Cr	C0r	Grease	Oil
20	42	12	9.4	5.05	17 000	21 000	6004
	42	12	11.5	5.85	18 000	21 000	6004R
	47	14	12.8	6.65	15 000	17 000	6204
	47	14	15.6	7.6	15 000	18 000	6204R
	52	15	15.9	7.85	14 000	17 000	6304
	52	15	18.1	8.95	14 000	16 000	6304R
	72	19	31	15.2	11 000	13 000	6404
22	44	12	9.4	5.15	17 000	20 000	60/22
	50	14	12.8	6.65	15 000	17 000	62/22
	56	16	18.5	9.4	13 000	15 000	63/22
25	37	7	4.3	2.95	18 000	21 000	6805
	42	9	7	4.55	16 000	19 000	6905
	47	8	8.85	5.6	15 000	18 000	16005
	47	12	10.1	5.85	15 000	18 000	6005
	52	15	14	7.85	13 000	15 000	6205
	52	15	17.6	9.3	13 000	16 000	6205R
	62	17	20.6	11.3	11 000	13 000	6305
	62	17	26.2	13.4	11 000	14 000	6305R
	80	21	36.1	19.4	9 100	11 000	6405
28	52	12	12.4	7.4	14 000	16 000	60/28
	58	16	17.9	9.75	12 000	14 000	62/28
	68	18	23.5	13.1	10 000	12 000	63/28
30	42	7	4.55	3.4	15 000	18 000	6806
	47	9	7.25	5	14 000	17 000	6906
	55	9	11.2	7.35	13 000	15 000	16006
	55	13	13.2	8.25	13 000	15 000	6006
	62	16	19.5	11.3	11 000	13 000	6206
	62	16	23.4	12.8	11 000	13 000	6206R
45	120	29	77.2	45.1	6 000	7 200	6409
50	65	7	6.6	6.1	9 600	11 000	6810
	72	12	14.5	11.7	9 000	11 000	6910
	80	10	16	13.3	8 200	9 700	16010
	80	16	21.8	16.6	8 400	9 900	6010
	90	20	35.1	23.3	7 100	8 500	6210
	90	20	40.4	25.5	7 100	8 600	6210R
	110	27	62	38.3	6 100	7 300	6310
	130	31	83	49.5	5 500	6 600	6410
55	72	9	8.8	8.1	8 700	10 000	6811
	80	13	16.6	14.1	8 100	9 600	6911
	90	11	19.3	16.3	7 400	8 800	16011
	90	18	28.3	21.2	7 600	8 900	6011
	100	21	43.4	29.4	6 300	7 600	6211
	120	29	71.6	45	5 600	6 700	6311
	140	33	100	62.3	5 000	6 000	6411
60	78	10	11.5	10.6	8 000	9 400	6812
	85	13	20.2	17.3	7 500	8 900	6912
	95	11	19.8	17.6	6 900	8 100	16012
	95	18	29.4	23.2	7 100	8 400	6012
	110	22	52.4	36.2	5 700	6 900	6212
	130	31	81.9	52.2	5 200	6 200	6312
	150	35	110	70.8	4 600	5 500	6412
65	85	10	11.9	11.5	7 300	8 600	6813
	90	13	17.4	16.1	7 100	8 400	6913
	100	11	17.1	16	6 600	7 800	16013
	100	18	30.5	25.2	6 600	7 800	6013
30	72	19	26.7	15	9 600	12 000	6306
	72	19	33.4	17.7	9 800	12 000	6306R
	90	23	43.4	23.9	8 100	9 700	6406
32	58	13	15	9.15	12 000	14 000	60/32
	65	17	23.5	13.1	10 000	12 000	62/32
	75	20	30.1	16.2	9 300	11 000	63/32
35	47	7	4.75	3.85	13 000	16 000	6807
	55	10	10.9	7.75	12 000	14 000	6907
	62	9	12.2	8.85	11 000	13 000	16007
	62	14	15.9	10.3	11 000	13 000	6007
	72	17	25.7	15.4	9 200	11 000	6207
	72	17	31	17.5	9 300	11 000	6207R
	80	21	33.4	19.3	8 500	10 000	6307
	80	21	40	21.7	8 700	10 000	6307R
	100	25	55	31	7 200	8 600	6407
40	52	7	4.95	4.2	12 000	14 000	6808
	62	12	13.7	9.95	11 000	13 000	6908
	68	9	12.6	9.65	9 800	12 000	16008
	68	15	16.7	11.5	10 000	12 000	6008
	80	18	29.1	17.8	8 300	10 000	6208
	90	23	40.7	24	7 700	9 200	6308
	110	27	63.7	36.6	6 600	7 900	6408
45	58	7	6.2	5.4	11 000	13 000	6809
	68	12	14.1	10.9	9 700	11 000	6909
	75	10	15.5	12.3	8 900	10 000	16009
	75	16	21	15.1	9 200	11 000	6009
	85	19	32.7	20.3	7 700	9 200	6209
	100	25	48.9	29.5	6 800	8 100	6309
85	130	22	49.5	43.1	5 000	5 900	6017
	150	28	84	61.9	4 200	5 000	6217
	180	41	133	96.8	3 700	4 400	6317
	210	52	173	136	3 300	3 900	6417
90	115	13	19	19.7	5 300	6 300	6818
	125	18	32.8	31.6	5 100	6 000	6918
	140	16	39.9	37	4 700	5 600	16018
	140	24	58.2	49.7	4 700	5 600	6018
	160	30	96.1	71.5	3 900	4 700	6218
	190	43	143	107	3 500	4 200	6318
	225	54	184	149	3 100	3 700	6418
95	130	18	33.7	33.5	4 800	5 700	6919
	145	16	41.2	39.6	4 500	5 300	16019
	145	24	60.4	53.9	4 400	5 200	6019
	170	32	109	81.9	3 700	4 400	6219
	200	45	153	119	3 300	4 000	6319
100	125	13	19.6	21.2	4 800	5 700	6820
	140	20	45	41.9	4 500	5 300	6920
	150	16	42.4	42.1	4 300	5 100	16020
	150	24	60.2	54.2	4 300	5 100	6020
	180	34	122	93.1	3 500	4 200	6220
	215	47	173	141	3 000	3 600	6320

Our Advantages:

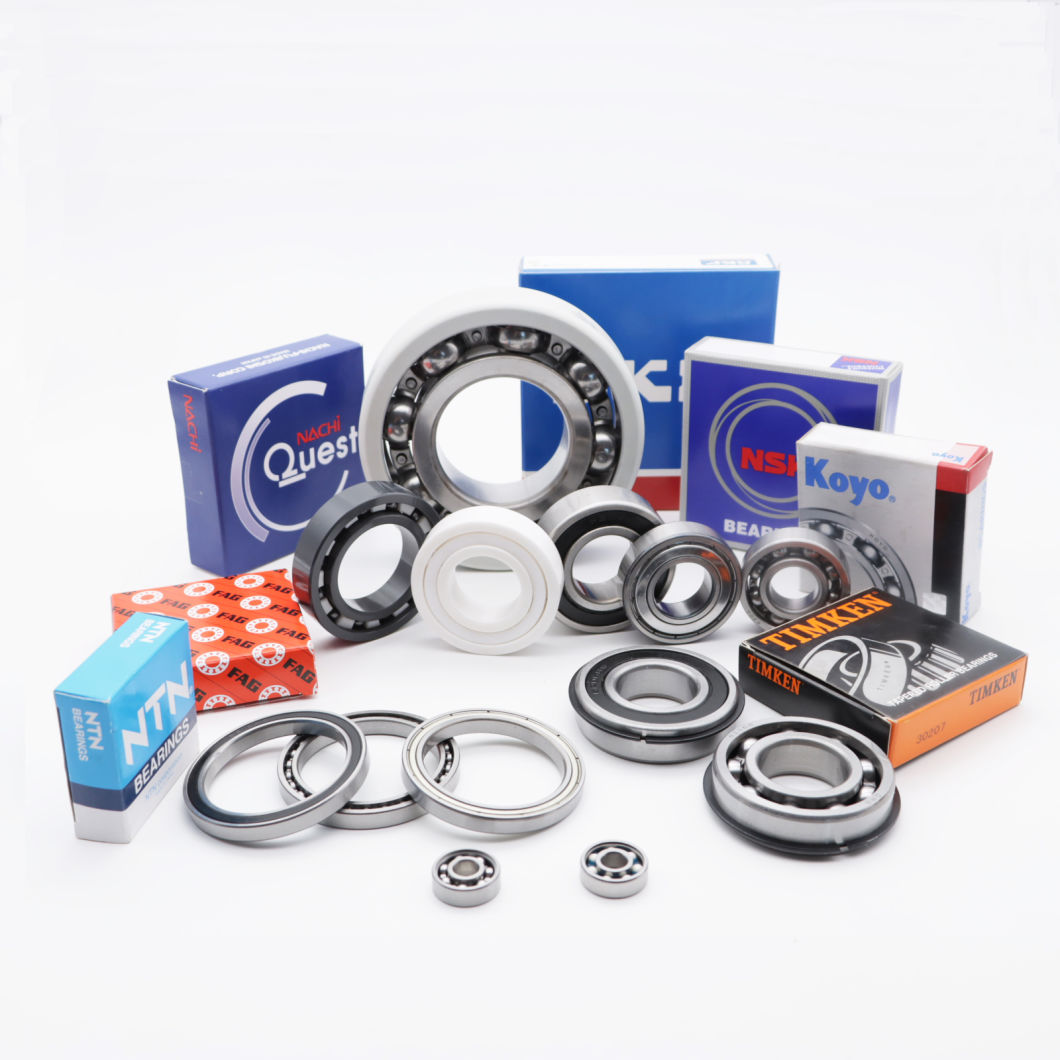

1. World-Class Bearing: We provide our customers with all types of indigenous bearing with world-class quality.
2. OEM or Non-Stand Bearings: Any requirement for Nonstandard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
3. Genuine products With Excellent Quality: The company has always proved the 100% quality products it provides with genuine intent.
4. After Sales Service and Technical Assistance: The company provides after-sales service and technical assistance as per the customer's requirements and needs.
5. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

Questions and Answers:
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

Please feel free to contact us, if you have any other questions.
