NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
Home » Bearings » Ball Bearing » Deep groove ball bearing » NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators

Related Products

loading

NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators

Quantity:
Inquire Add to Basket

sharethis sharing button

  • Guangzhou, China

  • 1000000 Pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • 6007 6009 6011 6013 6015

  • 1PC

  • P0 P6 P5

  • 3-7 Days(Depending on Customer Requirements)

  • Manufacturer

  • Europe, Asia, USA, Africa

  • NACHI

  • Box Pallet

  • 25*80*21

  • Japan

  • 8482102000

  • 0

  • Non-Aligning Bearing

  • Unseparated

  • Single

  • Radial Bearing

  • Bearing Steel

NACHI ball bearing 60 series 6007 6009 6011 6013 6015 for motorcycle/auto/generators

Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types.
Product Name deep groove ball bearing
Material ball bearing steel
Color Original steel color
Standard DIN GB ISO JIS
Brand SKF NTN NSK KOYO TIMKEN
Application Area Mining/metallurgy/agriculture/chemical industry/textile machinery

Features and Benefits:
1. Low friction and running temperatures, low noise, and vibration
2. High running speeds
3. High quality and performance capabilities for your application
4. Accommodate radial loads and axial loads in both directions
5. Available with a variety of greases for most conditions, including food quality grease, high-temperature grease, and Solid Oil
6. Increased reliability and provide long bearing and lubricant service life
Applications:
Electric motors and auto
Agriculture
Material handling
Industrial transmissions
Food and beverage
Industrial pumps
Industrial fans
Two and three wheelers
Cars and light trucks

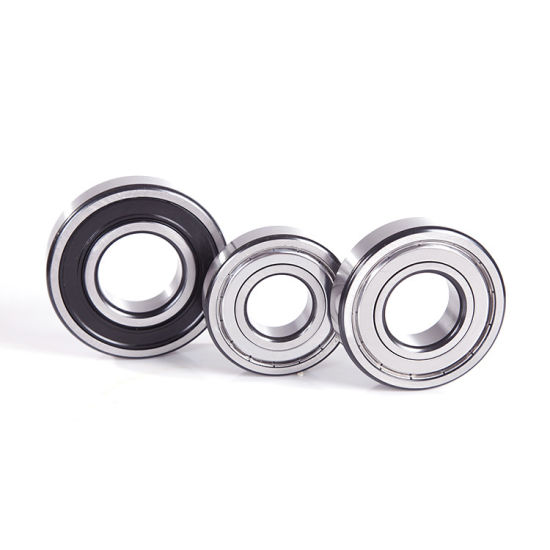

Product Display
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
Bearing Specification
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
Boundary
dimensions
(mm)		 Basic load
ratings
(kN)		 Limiting speeds
(r/min)		 Bearing
No.		 (Refer.)
Mass (kg)
d D B Cr C0r Grease Oil
20 42 12 9.40 5.05 17 000 21 000 6004 0.069
42 12 11.5 5.85 18 000 21 000 6004R 0.073
47 14 12.8 6.65 15 000 17 000 6204 0.106
47 14 15.6 7.60 15 000 18 000 6204R 0.114
52 15 15.9 7.85 14 000 17 000 6304 0.144
52 15 18.1 8.95 14 000 16 000 6304R 0.151
72 19 31.0 15.2 11 000 13 000 6404 0.400
22 44 12 9.40 5.15 17 000 20 000 60/22 0.073
50 14 12.8 6.65 15 000 17 000 62/22 0.118
56 16 18.5 9.40 13 000 15 000 63/22 0.201
25 37 7 4.30 2.95 18 000 21 000 6805 0.022
42 9 7.00 4.55 16 000 19 000 6905 0.041
47 8 8.85 5.60 15 000 18 000 16005 0.060
47 12 10.1 5.85 15 000 18 000 6005 0.080
52 15 14.0 7.85 13 000 15 000 6205 0.128
52 15 17.6 9.30 13 000 16 000 6205R 0.138
62 17 20.6 11.3 11 000 13 000 6305 0.232
62 17 26.2 13.4 11 000 14 000 6305R 0.255
80 21 36.1 19.4 9 100 11 000 6405 0.530
28 52 12 12.4 7.40 14 000 16 000 60/28 0.097
58 16 17.9 9.75 12 000 14 000 62/28 0.173
68 18 23.5 13.1 10 000 12 000 63/28 0.328
30 42 7 4.55 3.40 15 000 18 000 6806 0.026
47 9 7.25 5.00 14 000 17 000 6906 0.045
55 9 11.2 7.35 13 000 15 000 16006 0.085
55 13 13.2 8.25 13 000 15 000 6006 0.116
62 16 19.5 11.3 11 000 13 000 6206 0.199
62 16 23.4 12.8 11 000 13 000 6206R 0.212
10 19 5 1.70 0.84 37 000 43 000 6800 0.005
22 6 2.70 1.25 34 000 41 000 6900 0.010
26 8 4.55 1.95 31 000 36 000 6000 0.019
30 9 5.10 2.40 24 000 29 000 6200 0.032
35 11 8.10 3.45 22 000 27 000 6300 0.053
12 21 5 1.90 1.05 33 000 39 000 6801 0.006
24 6 2.90 1.45 31 000 36 000 6901 0.011
28 7 5.10 2.40 27 000 32 000 16001 0.024
28 8 5.10 2.40 27 000 32 000 6001 0.022
32 10 6.80 3.05 22 000 27 000 6201 0.037
37 12 9.70 4.20 20 000 25 000 6301 0.060
15 24 5 2.10 1.25 28 000 33 000 6802 0.007
28 7 4.30 2.25 26 000 30 000 6902 0.017
32 8 5.60 2.85 23 000 28 000 16002 0.025
32 9 5.60 2.85 23 000 27 000 6002 0.030
35 11 7.65 3.75 20 000 24 000 6202 0.045
42 13 11.4 5.45 17 000 20 000 6302 0.082
17 26 5 2.60 1.55 26 000 30 000 6803 0.008
30 7 4.60 2.55 23 000 28 000 6903 0.018
35 8 6.00 3.25 21 000 25 000 16003 0.032
35 10 6.00 3.25 21 000 25 000 6003 0.039
40 12 9.55 4.80 17 000 21 000 6203 0.065
47 14 13.6 6.65 15 000 18 000 6303 0.115
47 14 15.6 7.60 15 000 18 000 6303R 0.121
62 17 20.7 9.85 13 000 15 000 6403 0.270
20 32 7 4.00 2.45 21 000 25 000 6804 0.018
37 9 6.35 3.70 19 000 23 000 6904 0.036
42 8 7.95 4.50 17 000 21 000 16004 0.050
45 120 29 77.2 45.1 6 000 7 200 6409 1.53
50 65 7 6.60 6.10 9 600 11 000 6810 0.052
72 12 14.5 11.7 9 000 11 000 6910 0.133
80 10 16.0 13.3 8 200 9 700 16010 0.180
80 16 21.8 16.6 8 400 9 900 6010 0.261
90 20 35.1 23.3 7 100 8 500 6210 0.463
90 20 40.4 25.5 7 100 8 600 6210R 0.487
110 27 62.0 38.3 6 100 7 300 6310 1.07
130 31 83.0 49.5 5 500 6 600 6410 1.88
55 72 9 8.80 8.10 8 700 10 000 6811 0.083
80 13 16.6 14.1 8 100 9 600 6911 0.185
90 11 19.3 16.3 7 400 8 800 16011 0.260
90 18 28.3 21.2 7 600 8 900 6011 0.385
100 21 43.4 29.4 6 300 7 600 6211 0.607
120 29 71.6 45.0 5 600 6 700 6311 1.37
140 33 100 62.3 5 000 6 000 6411 2.29
60 78 10 11.5 10.6 8 000 9 400 6812 0.104
85 13 20.2 17.3 7 500 8 900 6912 0.192
95 11 19.8 17.6 6 900 8 100 16012 0.280
95 18 29.4 23.2 7 100 8 400 6012 0.415
110 22 52.4 36.2 5 700 6 900 6212 0.783
130 31 81.9 52.2 5 200 6 200 6312 1.70
150 35 110 70.8 4 600 5 500 6412 2.77
65 85 10 11.9 11.5 7 300 8 600 6813 0.126
90 13 17.4 16.1 7 100 8 400 6913 0.211
100 11 17.1 16.0 6 600 7 800 16013 0.300
100 18 30.5 25.2 6 600 7 800 6013 0.435
30 72 19 26.7 15.0 9 600 12 000 6306 0.346
72 19 33.4 17.7 9 800 12 000 6306R 0.379
90 23 43.4 23.9 8 100 9 700 6406 0.735
32 58 13 15.0 9.15 12 000 14 000 60/32 0.127
65 17 23.5 13.1 10 000 12 000 62/32 0.228
75 20 30.1 16.2 9 300 11 000 63/32 0.437
35 47 7 4.75 3.85 13 000 16 000 6807 0.030
55 10 10.9 7.75 12 000 14 000 6907 0.073
62 9 12.2 8.85 11 000 13 000 16007 0.110
62 14 15.9 10.3 11 000 13 000 6007 0.155
72 17 25.7 15.4 9 200 11 000 6207 0.288
72 17 31.0 17.5 9 300 11 000 6207R 0.309
80 21 33.4 19.3 8 500 10 000 6307 0.457
80 21 40.0 21.7 8 700 10 000 6307R 0.494
100 25 55.0 31.0 7 200 8 600 6407 0.952
40 52 7 4.95 4.20 12 000 14 000 6808 0.033
62 12 13.7 9.95 11 000 13 000 6908 0.112
68 9 12.6 9.65 9 800 12 000 16008 0.125
68 15 16.7 11.5 10 000 12 000 6008 0.192
80 18 29.1 17.8 8 300 10 000 6208 0.366
90 23 40.7 24.0 7 700 9 200 6308 0.633
110 27 63.7 36.6 6 600 7 900 6408 1.23
45 58 7 6.20 5.40 11 000 13 000 6809 0.040
68 12 14.1 10.9 9 700 11 000 6909 0.132
75 10 15.5 12.3 8 900 10 000 16009 0.170
75 16 21.0 15.1 9 200 11 000 6009 0.245
85 19 32.7 20.3 7 700 9 200 6209 0.407
100 25 48.9 29.5 6 800 8 100 6309 0.833
85 130 22 49.5 43.1 5 000 5 900 6017 0.890
150 28 84.0 61.9 4 200 5 000 6217 1.79
180 41 133 96.8 3 700 4 400 6317 4.23
210 52 173 136 3 300 3 900 6417 8.07
More Products
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
OEM Service
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
About Us
1.Our company was founded in 2006, 14 years of rich experience makes us more professional.We guarantee to provide you with the most competitive price and the best products.

2. The company has a number of high-quality design, processing, manufacturing and testing technology engineering technical team, advanced equipment, advanced technology, and imported parts, from Taiwan, Germany imports, can produce high-quality machine tools.The company has a professional r & d team and after-sales service team, you buy high-end products, we do is quality service.

3. The company has an automatic production line, which guarantees unified product quality, reduces cost, shortens delivery time and improves production efficiency.

4. The bearings produced by the company have high precision, high speed, small wear, service life, standard size, compact structure and fast running speed.The company has been awarded"China 3.15 integrity enterprises", "China famous brand products", "quality inspection national standards qualified products" and other national authoritative certificates.Obtained a number of national patents, become the domestic leading enterprises.
Factory
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
Package
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators
NACHI Ball Bearing 60 Series 6007 6009 6011 6013 6015 for Motorcycle/Auto/Generators

Our Advantages:
1. World-Class Bearing: We provide our customers with all types of indigenous bearing with world-class quality.
2. OEM or Non-Stand Bearings: Any requirement for Nonstandard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
3. Genuine products With Excellent Quality: The company has always proved the 100% quality products it provides with genuine intent.
4. After Sales Service and Technical Assistance: The company provides after-sales service and technical assistance as per the customer's requirements and needs.
5. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

Questions and Answers:
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Please feel free to contact us, if you have any other questions
